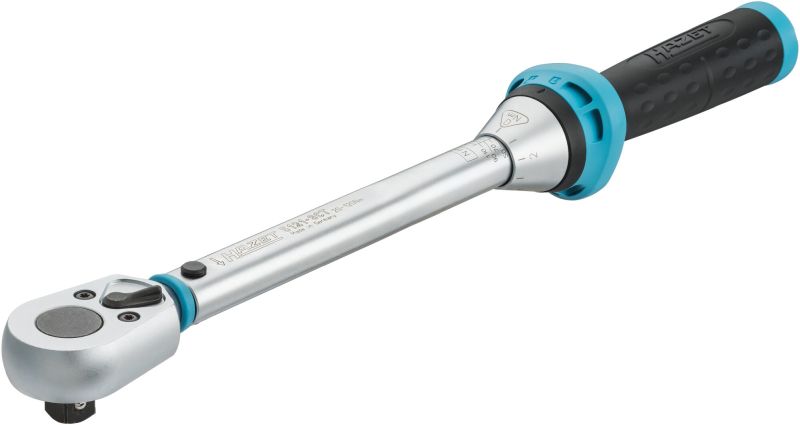

5121-3CT Momentni ključ1 MOMENT KLJUČ 1/2 " 20-120 Nm


Kratke informacije:
HAZET Torque wrench 5121-3CT ∙ Torque range min-max:
20 – 120 Nm ∙ Accuracy: 3% ∙ 1/2 inch (12.5 mm) square,
solid ∙ 421 mm

Opće informacije:

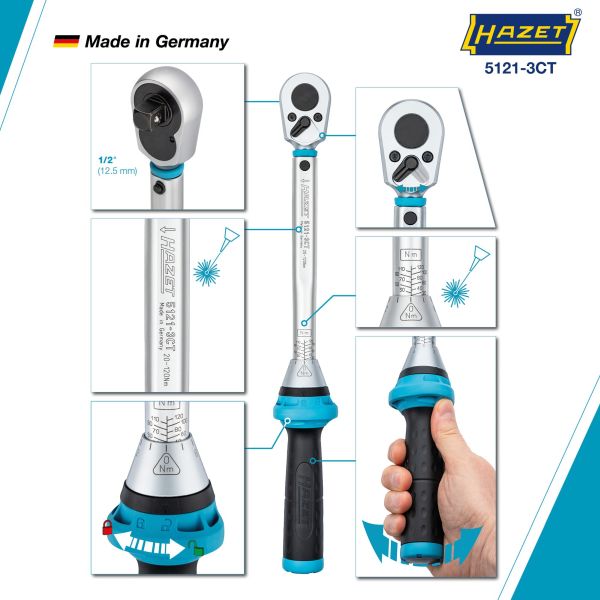

•User-friendly reversible ratchet

– SYSTEM 5000-3 CT –

•Accuracy ± 3% of the scale value (in direction of actuation
for right-hand tightening) (5107-3CT ± 4% accuracy of
scale value)

•For left-hand tightening, use our torque wrenches with
insert tool

•Safety:

•Haptic (close-gap release)

•Audible ("click" sound)



•Designed for rough workshop use

•Wide range of applications for controlled screw tightening
in tyre service, bicycle, passenger car and commercial
vehicle applications as well as various applications in
trade and industry

•Optimised sealing ring to protect against debris

•Ratchet repair set for customer-oriented self-assembly
enables decades of use

•Handle with better grip for easier power transmission

•Adjustment aid with detent points for optimised operator
guidance ensures safe and fast adjustment of the desired
torque value by turning the handle

•Safe locking of the setting values by latching function on
the rotary assembly

•Rotary assembly in triangular form prevents uncontrolled
rolling

•Lock symbols indicate the respective locking status

•Can be attached to the cable loop through openings on the
locking rotary assembly

•Easy-to-read, high-contrast scale

•Permanent readability due to laser marking on the scale
bush

•Integrated shift lever
5121-3CT – 5123-3CT: shift lever with idle function –
reduces risk of injury and malfunction

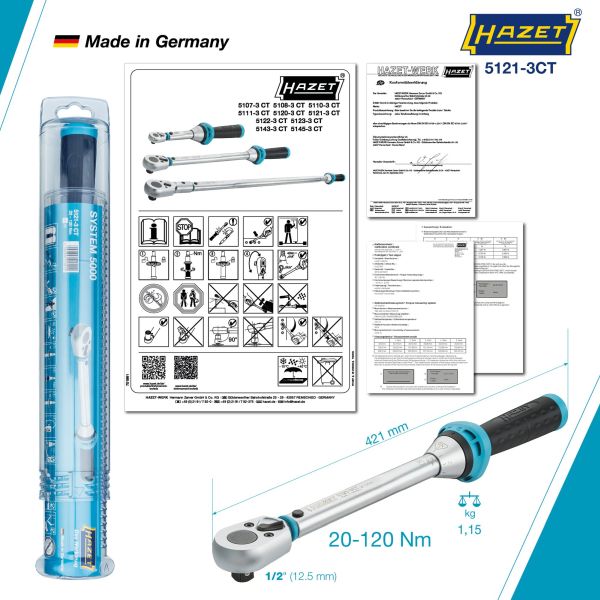

•With calibration certificate and serial number

•Delivery in sturdy Hexa plastic box

•DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1

•Made in Germany

•Output: 1/2 inch (12.5 mm) square, solid

•Dimensions / length: 421 mm

•Net weight: 1.15 kg

•Torque range min-max: 20 – 120 Nm

•Accuracy: 3 %

•Scale Graduation (Nm): 1 Nm

•Actuating force min.-max. kg: 6.1 – 38.0 kg

•Number of teeth: 32 (Opening angle 11.25°)

•Head Thickness a: 19.6 mm

•Head Width b: 44 mm

•No more turning back: Continuous long-term tests on the
5000 series and 6000 series of HAZET torque wrenches have
demonstrated that turning them back to the smallest scale
value is not required

SYSTEM 5000-3 CT Workshop torque wrenches1 – 800 N·m ∙ with
reversible ratchet ∙ accuracy ± 3 / 4 %
